Rural Shed Specifications

Tilmac Specifications & Options

Heavy duty Fabricated Frame
 Span  Height  Length  Bay size
 up to 60m+  up to 60m+   up to 60m+  up to 10m+
 Frame  Roof Pitch  Roof Sheet  Wall Sheets
Option of

  • Duragal RHS

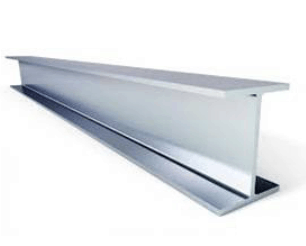

  • UB Truss
  • UB posts

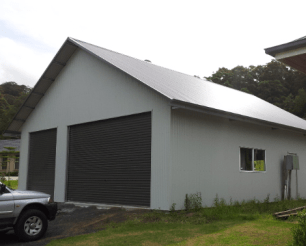

15 deg standard
(also from 5 deg to 30 deg)
Corrugated or trimdec
sheeting in .42mm
 Corrugated or trimdec
sheeting in .42mm
Standard C Purlin Frame
 Span   Height Length  Bay size
 3m to 7m  up to 3.6m  up to 40m  3m or 3.5m
  Frame  Roof Pitch  Roof Sheet   Wall Sheets
Heavy duty galvansied
C150 to C300 purlin

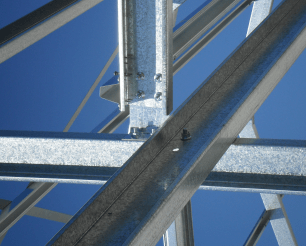

frame with fully bolted
connections
15 deg standard
(also from 5 deg to 30 deg)
 Corrugated or trimdec
sheeting in .42mm
 Corrugated or trimdec
sheeting in .35mm
Heavy Duty C Purlin Frame
 Span   Height Length  Bay size
 5m to 12m  up to 4.8m  up to 60m 6m standard
  Frame  Roof Pitch  Roof Sheet   Wall Sheets
Heavy duty galvansied
C150 to C300 purlin
frame with fully bolted
connections
15 deg standard
(also from 5 deg to 30 deg)
 Corrugated or trimdec
sheeting in .42mm
 Corrugated or trimdec
sheeting in .42mm
